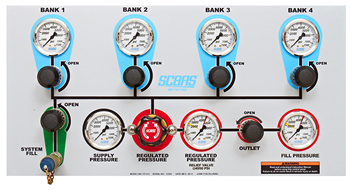

Air Control Panels
SCBAS INC. air control fill panels include the following standard features:
-
Panel overlay with NFPA 1901 color code, flow diagram, and ¼” thick aluminum panel
-
2 ½” gauge for each bank
-
Soft seat control valve for each bank
-
Push-to-set pressure reducing regulator, 0-6000 PSI inlet, 0-6000 PSI outlet
-
2 ½” Master inlet gauge for regulator
-
2 ½” Regulated pressure gauge, pied at 2216 PSI, 4500 PSI, and 5500 PSI
-
Quick disconnect system refill with valve
-
CGA-347 male outlet with valve
-
All valves, fittings and tubing are rated for 6000 PSI working pressure (minimum)
-
All gauges are liquid filled, 2 ½” diameter, 0-7500 psi
-
All control valves can be rebuilt from the front of the panel without disturbing any plumbing
-
Preset relief valve on regulator outlet
-
Panels are manufactured to meet or exceed NFPA-1901 standards
Options
-
SCBA fill pressure gauge on standard outlet
-
Extra push-to-set pressure regulator, 0-6000 PSI outlet or 0-400 PSI outlet with regulated pressure gauge and soft seat control valve
-
Extra outlet(s)
-
Booster pump connections with soft seat control valve
-
Custom sizes and lay-outs for panels to meet your specifications
-
We will build a panel any size or configuration as long as we deem that it is safe, functional, and satisfies NFPA-1901 standards
-
Custom black powder painted air control panel enclosure with hinge.
-
Custom Company or Fire Department logo’s on the panel overlay
