Hydraulics International



Breathing Air Booster Package for Fire Departments answers multiple requirements. It enables the full use of 6000-psi air storage on mobile truck units maximizing the volume of air at the scene.

Request A Quote

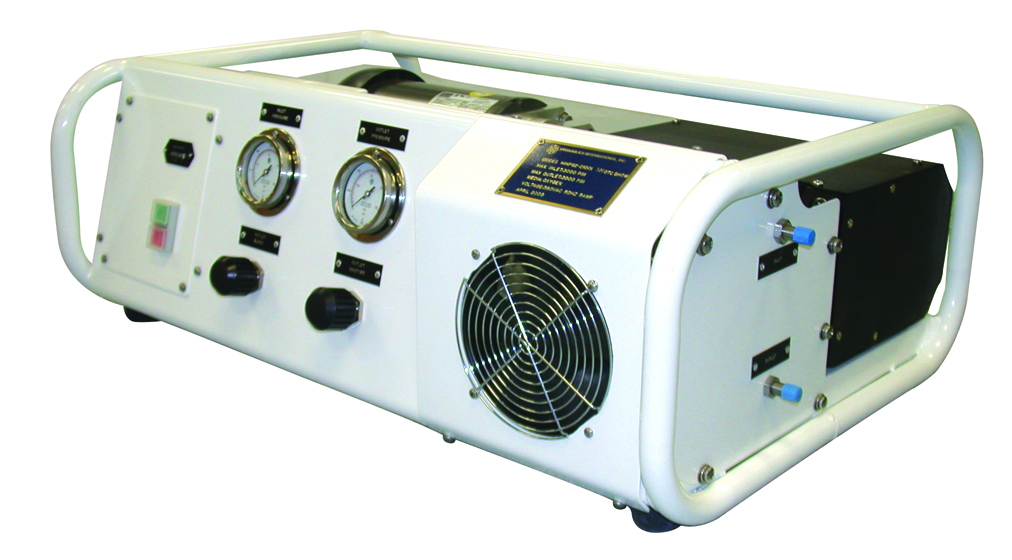

Electric Driven Booster Systems

Series 2G Electric Driven Booster package is ideal for filling or topping off low-pressure and high-pressure bottles. Its two-stage and double acting design uses no belts or pulleys, making it the quietest electric driven booster in its class; only 60 dBA. The unit is air cooled with its integrated cooling fan reducing the heat of compression for long seal life.

Key Features

Rated up to 10,000-PSI (690 BAR)

SPECIFICATIONS:
  • Motor: 2-HP, 1750/1440 RPM @ 60/50-Hz
  • Weight: 145-Lbs (65.9 Kg)
  • Voltage: 115 VAC, 20.4 Amps, 1-Phase, 60/50 Hz
  • 220 VAC, 10.2 Amps, 1-Phase, 60/50 Hz
  • 230 VAC, 5.8 Amps, 3-Phase, 60/50 Hz
  • 460 VAC, 2.9 Amps, 3-Phase, 60/50 Hz
  • 380 VAC, 3.0 Amps, 3-Phase, 60/50 Hz
  • Dimensions: 37”L x 11.5”H x 22”D (940x292x559 mm)
  • Low noise level: 63 dBA
  • Operating speed: 43, 70, 88, 115 Cycles/min (CPM)
  • Optional: variable drive
  • Ports (inlet/outlet): 1/4” or 3/8” NPT or 37O flare
  • Max. outlet pressure: 10,000 PSI (690 BAR)
CONTROLS:
  • Automatic high pressure limit switch set to stop the booster when the gas outlet pressure exceeds set point
  • Manual start & stop switch
  • Safety relief valve
  • Inlet & outlet pressure gauges (dual scale)
  • 6-Digit hour meter
  • Inlet & outlet 5-micron filters
  • Cooling fan
  • Outlet shutoff valve (needle type)
  • Bleed valve (needle type)
  • Automatic low pressure limit switch set to stop & restart the booster when the gas inlet pressure drops below set point
  • Automatic high pressure limit switch set to stop & restart the booster when the gas outlet pressure exceeds set point
  • Remote start & stop switch with 10-foot cord
  • Flow control gas inlet pressure regulator with full pressure bypass line
  • Dual outlet pressure control
  • 4-Port outlet manifold
  • Oxygen cleaned to MIL-STD-1330D

6000-PSI Breathing Air Booster Package

MODEL: HIHPG3-27003

Breathing Air Booster Package for Fire Departments answers multiple requirements. It enables the full use of 6000-psi air storage on mobile truck units maximizing the volume of air at the scene. It ensures full 4500-6000 psi SCBA tank fills even if the air storage tanks (in-station or on the Mobile unit) drop as low as1000-psi. Smaller departments may not need a unit both in-station, and truck mounted. The truck mounted unit can be easily setup to fill 4500-6000 psi SCBA both parked in-station, or at the fire scene; and be driven with a low pressure conventional air compressor, or “bootstrap” directly from the high-pressure air storage supply in either location.

SPECIFICATIONS:
  • Dimensions: 30"L x 13"D x 17"H
  • Weight: 64-pounds
  • Displacement per cycle: 6.2 cu-in
  • Maximum outlet pressure: 9,000-psi
CONTROLS:
  • Automatic stop control adjusted to any pre-selected pressure up to 6,000-psi
  • Manual start & stop
  • Safety relief valve
  • Gas inlet gauge
  • Air drive gauge
Performance: Approximate fill-time for a 45 cu-ft cylinder to 4,500-psi Based on 90-psi shop air and 45 cycles per minute
  • System pressure after equalization approx. fill-time approx. fill rates
  • 2500-psi 36-seconds 32-scfm
  • 2300-psi 43-seconds 30-scfm
  • 2000-psi 56-seconds 26-scfm
  • 1500-psi 86-seconds 20-scfm
  • 1000-psi 160-seconds 13-scfm
